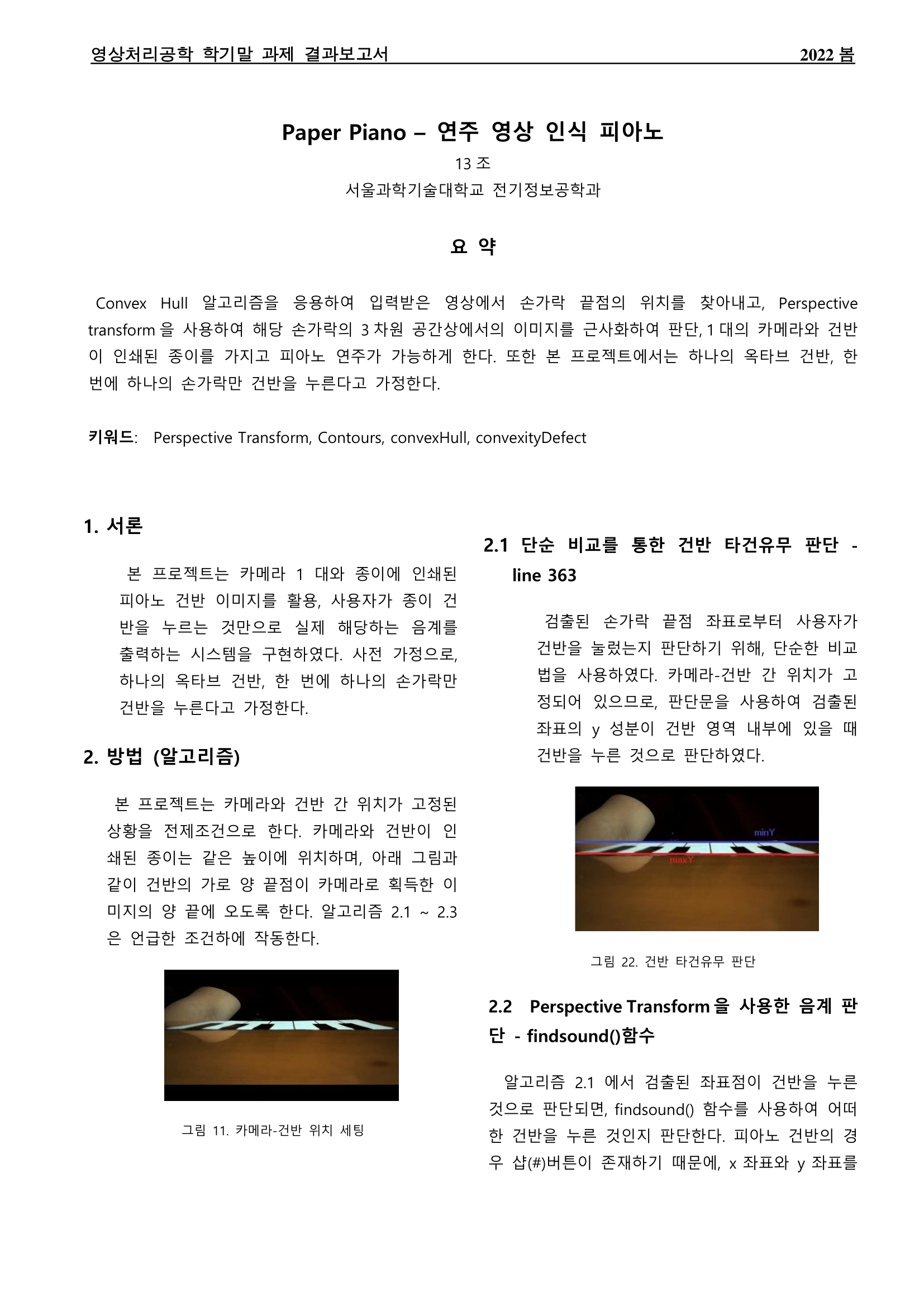

[영상처리공학/OpenCV with python]연주 영상 인식 피아노

---

findsound()

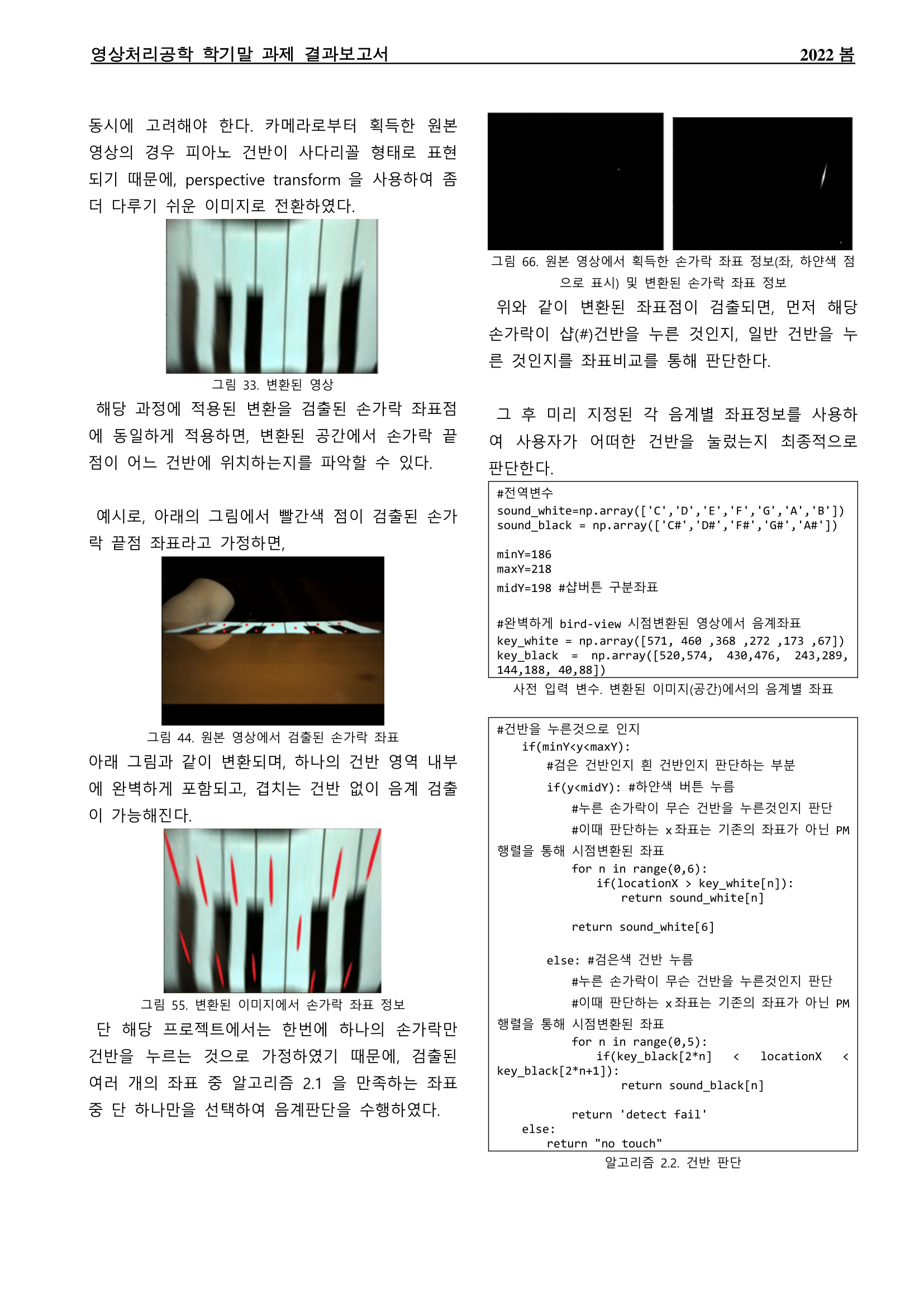

#손가락 좌표점 표시를 위한 이미지     whiteboard=np.zeros((480,640,1))               #단일 픽셀 지정시 Perspective Transform 이 제대로 적용되지 않아 손가락 좌표를 영역으로 표시     center = (int(x), int(y))     whiteboard = cv2.drawMarker(whiteboard, center, (255,255,255), cv2.MARKER_CROSS, markerSize=2,thickness=2)               #plt.imshow(whiteboard,cmap="gray")     #plt.title("fingermap_before transform")     #plt.show()          #손가락 위치가 저장되는 이미지     fingerlocation = cv2.warpPerspective(whiteboard, PM, (640,480))     center = (600, 450)     fingerlocation = cv2.drawMarker(fingerlocation, center, (255,255,255), cv2.MARKER_CROSS, markerSize=2,thickness=2)          #plt.imshow(fingerlocation,cmap="gray")     #plt.title("fingermap_after transform")     #plt.show()          #fingerlocation 이미지에서 0이 아닌 좌표값 찾기     #TRUE 인 곳의 인덱스 반환     if(np.where(fingerlocation != 0) != None):         idx_TRUE=np.where(fingerlocation != 0)     else:         idx_TRUE=np.zeros([1,1])              idx_TRUE_X, idx_TRUE_Y = idx_TRUE          #해당 인덱스 중 최초 인덱스의 X좌표 반환. 이는 변환된 좌표값임.     locationX=idx_TRUE[1][0]                            #건반을 누른것으로 인지     if(minY<y<maxY):         #검은 건반인지 흰 건반인지 판단하는 부분         if(y<midY): #하얀색 버튼 누름             #누른 손가락이 무슨 건반을 누른것인지 판단             #이때 판단하는 x좌표는 기존의 좌표가 아닌 PM 행렬을 통해 시점변환된 좌표             for n in range(0,6):                 if(locationX > key_white[n]):                     return sound_white[n]                              return sound_white[6]                  else: #검은색 건반 누름             #누른 손가락이 무슨 건반을 누른것인지 판단             #이때 판단하는 x좌표는 기존의 좌표가 아닌 PM 행렬을 통해 시점변환된 좌표             for n in range(0,5):                  if(key_black[2*n] < locationX < key_black[2*n+1]):                     return sound_black[n]                              return 'detect fail'     else:         return "no touch"

locationfilter()

#검출 좌표 배열. 최대 7개만 검출되는 상황 가정.     '''     fingerlocation = np.zero([1,2,10]) # X좌표, Y좌표, 좌표 인덱스     '''     for i in range(0,6):         if(minY < fingerset[0][1][i] < maxY): #건반을 누른 손가락이 있다면             print("output coordinate is ",fingerset[0][0][i], fingerset[0][1][i])             return fingerset[0][0][i], fingerset[0][1][i] # x좌표, y좌표 리턴          #print("output coordinate is ",0 , 0)     return 0,0 #없으면 0,0 리턴(안 눌린 상황)

---

https://www.youtube.com/watch?app=desktop&v=m7SFeYl6IZE
